500ES-350Z Soap Production Mixer Machine with Electric/Steam Heating and 15 kW Power

Large Image : 500ES-350Z Soap Production Mixer Machine with Electric/Steam Heating and 15 kW Power

Product Details:

Place of Origin:	Gansu, China
Brand Name:	LIMAC

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$5,000.00 - $30,000.00/sets
Packaging Details:	wood box
Supply Ability:	10 Set/Sets per Month

Contact Now

500ES-350Z Soap Production Mixer Machine with Electric/Steam Heating and 15 kW Power

Description

Mixer Type:	Agitator	Barrel Volume (L):	500, 500
Material Processed:	Chemicals	Max. Loading Volume (L):	400 L, 400L
Weight (KG):	1500 KG	Material:	Stainless Steel
Condition:	New	Product Type:	Soap
Additional Capabilities:	Granulating	Voltage:	220v
Power (kW):	15 KW	Warranty:	1 Year
Key Selling Points:	High Productivity	Applicable Industries:	Hotels, Manufacturing Plant
Showroom Location:	Philippines, Indonesia	Marketing Type:	New Product 2019
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	More Than 5 Years	Core Components:	Motor, Gear, Engine
Name:	Soap Mixer	Product Name:	Mixing Machine
Machine Type:	Mixer	Capacity:	100L~1000L
Advantage:	Long Service Life, Competitive Price	Heating Method:	Electric Heating Or Steam Heating (Optional)
Mixing Speed:	0-56r/min	Keyword:	Soap Mixer Machine
Port:	Shanghai Or Qingdao

LIMAC Soap Production Machine 500ES-350Z homogenizer dynamic motor soap mixer machine

Product Description

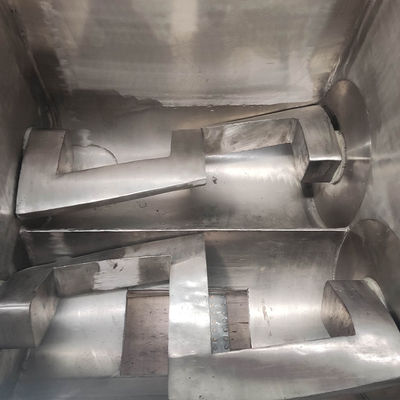

Pelletizing Mixer with three drives for toilet or transparent soap is a new developed bi-axial Z agitator.This type of mixer has agitator blade with 55° twist, to increase the mixing arc length, so to have soap inside the mixer stronger mixing. At the bottom of the mixer, an extruder' s screw is added. That screw can rotate in both directions. During the mixing period, the screw rotates in one direction to recirculate the soap to the mixing area, whine during soap discharging period, the screw rotates in another direction to extrude the soap out in form of pellets to feed the three-roll mill, installed below the mixer. The two agitators run in opposite directions and with difterent speeds, and are driven by two German SEW gear reducers separately. The rotating speed of fast agitator is 36 r/min while the slow agitator is 22 r/min. The screw diameter is 300 mm, rotating speed 5 to 20 r/min.

Fully automatic dosing mixer with two Z-shaped agitators

●Capacity: 2000S/2000ES- 3D540Z：250 kg/batch 3000/3000ES 3D600Z：350 kg/batch ●Electric contiguration: 2000S/2000ES- 3D540Z：15Kw+15KW+ 15KW

3000S/3000ES- 3D600Z：18.5KW+ 18.5Kw+15KW

Type	Diameter of rmixling blade(mm)	Speed(r/min)	Capacity(kg/batch)	Motor(kW)
3000ES-600Z	600	Shaft A 36 Shaft B 22	400	18.5+18.5
2000ES -540Z	540		Shaft B 22	300	15+15
1000ES- 450Z	450			200	11+11

Specification

item	value
Mixer Type	Agitator
Barrel Volume (L)	500
Max. Loading Volume (L)	400L
Weight (KG)	1500KG
Condition	New
Place of Origin	China
	Gansu
Brand Name	LIMAC
Power (kW)	15kW
Warranty	1 Year
Key Selling Points	High Productivity
Applicable Industries	Manufacturing Plant
Showroom Location	Indonesia
Marketing Type	New Product 2019
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	More than 5 years
Core Components	Gear
name	soap making machine
sigma mixer for soap	sigma soap mixer
Machine Type	Mixer
Product Type	Soap
