220v Bottom Discharged Three Roll Mill For Soap Making Machine

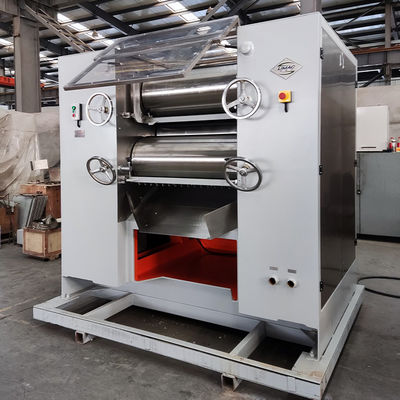

Large Image : 220v Bottom Discharged Three Roll Mill For Soap Making Machine

Product Details:

Place of Origin:	Gansu, China
Brand Name:	LIMAC

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$49,000.00/sets 1-1 sets
Packaging Details:	wooden box
Supply Ability:	5 Set/Sets per Month

Contact Now

220v Bottom Discharged Three Roll Mill For Soap Making Machine

Description

Output (kg/h):	500 - 3000 Kg/h	Feeding Size (mm):	10 - 30 Mm
Output Size (mesh):	100 - 500 Mesh	Power (kW):	15
Range Of Spindle Speed(r.p.m):	100 - 200 R.p.m	Material:	SUS304, SUS316L
Application:	Chemicals Processing	Condition:	New
Type:	Grinder	Product Type:	Soap
Voltage:	220v	Weight (KG):	5000 KG
Warranty:	1 Year	Key Selling Points:	High Safety Level
Applicable Industries:	Manufacturing Plant	Showroom Location:	Egypt, Indonesia, Uzbekistan, Malaysia
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Gear, Motor, Engine	Roller Diameter:	405 Mm
Reducer:	SEW MOTOR	Rotating Speed:	177 R/min
Usage:	Milling Soap Base	Roller Material:	Stainless Steel
Capacity:	2000-4000 Kg/h (Adjustable)	Effective Length:	900 Mm
Wall Thickness:	60 Mm	After Warranty Service:	Video Technical Support, Online Support, Spare Parts
Keyword:	Three Roll Mill	Port:	Qingdao

Bottom discharged three roll mill from soap making machine

Product Description

HIGH PRECISION DOUBLE SCRAPER BOTTOM- DISCHARGE ROLLER CAN MAKE PURE VEGETABLE OIL SOAP NOODLES TRANSPARENT ONCE.

This bottom discharged mill with three rolls and two scrapers are design for professional soap producers. The soap particle size can reach 0.05 mm after milling. The size of milled soap is uniformly distributed, that means 100% of fficiency, The 3 rolls, made from stainless alloy 4Cr, are driven by 3 gear reducers with their own speed. The gear reducers are supplied by SEW, Germany. The clearance between rolls can be adjusted independenty; the adjusting error is 0.05 mm max. The clearance is fixed by shrinking sleeves supplied by KTR, Germany, and set screws.

The smashed soap will form flakes by pressure since the mill is bottom discharged. The milling process is no pollution to the environment, low noiso, no dropping of soap. The mill is applcable to processing tlilet soap, low-fat soap and translucent soap.

This mill now is in the top of similar machine in the world.

PRODUCT SPECIFICATIONS

No	Item	Data
1	fast Power	18KW
2	Middle power	15 kw
3	low power	7.5kw

MECHANCAL CONIGURATION:

Germany SEW gear reducers, speed ratio is 203:75:29 are used. German KTR universal coupling and expanding sleeve are adopted. The outside diameter of the roller is 405 mm, the effective length is 900 mm, and the wall thickness is 60 mm. There is a cooling device inside the rller, which is sealed by a mechanical seal. The three rollers are made of 4Cr stainless alloy, and after heat treatment, the surface hardness reaches 72 degree Shore.

ELECTRIC MOTORS:

Fast roll 18.5 kW / Middle roll 15 kW / Slow roll 7.5 kW
