Three-Drives Two-Z-Formed-Shafts Soap Mixer Machine for Chemical Material Processing

Large Image : Three-Drives Two-Z-Formed-Shafts Soap Mixer Machine for Chemical Material Processing

Product Details:

Place of Origin:	Gansu, China
Brand Name:	LIMAC

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$5,000.00 - $30,000.00/sets
Packaging Details:	wood box
Supply Ability:	10 Set/Sets per Month

Contact Now

Three-Drives Two-Z-Formed-Shafts Soap Mixer Machine for Chemical Material Processing

Description

Mixer Type:	Agitator	Barrel Volume (L):	500
Material Processed:	Chemicals	Max. Loading Volume (L):	400 L
Range Of Spindle Speed(r.p.m):	22 - 36 R.p.m	Weight (KG):	1500 KG
Material:	SUS304, SUS316L, Stainless Steel	Condition:	New
Product Type:	Soap	Additional Capabilities:	Granulating
Voltage:	220v	Power (kW):	15 KW
Warranty:	1 Year	Key Selling Points:	High Productivity
Applicable Industries:	Hotels, Manufacturing Plant	Showroom Location:	Philippines, Indonesia
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	More Than 5 Years
Core Components:	Motor, Gear, Engine	Name:	Soap Mixer
Product Name:	Mixing Machine	Machine Type:	Mixer
Capacity:	300 Kg/batch	Advantage:	Long Service Life, Competitive Price
Speeds:	Shaft A22 Rpm,Shaft B 36 Rpm	Screw:	5-20 Rpm Adjustable
Heating Method:	Electric Heating Or Steam Heating (Optional)	Mixing Speed:	0-300r/min
Keyword:	Soap Mixer Machine	Port:	Shanghai Or Qingdao

High Speed Soap making machine Three-Drives Two-Z-Formed-Shafts soap mixer machine

Product Description

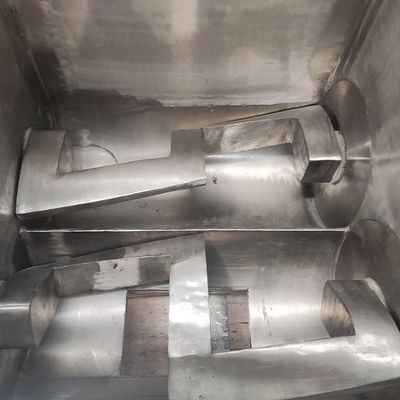

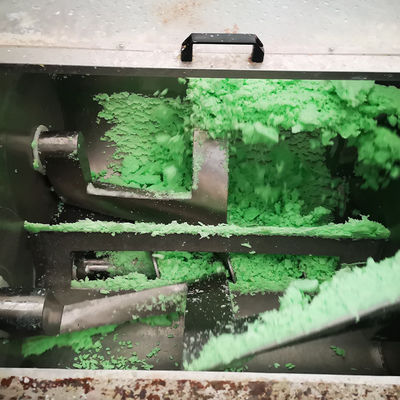

This mixer that has 2 shafts and 3 drives is the first created in China. This mixer can be used for mixing and milling of different soap pellets. Two-speed Z-formed double shafts plus screw shaft that rotates in opposite direction push the soap pellets upwards. The soap pellets will be stroked to powder in three minutes. The mixing is uniform and strong. The worm installed at bottom of the mixer is for soap refining and compress the milled soap powder into pellets, sent to next process.

CAPACITY:

ESI-3D540 300 kg/batch ESI-3D600 4000 kg/batch MECHANCAL CONIGURATION: All parts in contact with soap are in stainless steel 304,321,316L; Z-tormed agitating shats are with 55 degree twist; 3 sets of SEW gear reducers are used; MOTORS: ESI-3D540Z 15 kW+15 kW+15 kW ESI-3D540Z 15 kW+15 kW+15 kW ESI-3D600Z 18.5 kW+18.5 kW+18.5 kW ESI-3D600Z 18.5 kW +18.5 kW +18.5 kW

Speeds: ShattA22 rpm，Shaft B 36 rpm Screw 5-20 rpm adjustable

Specification

item	value
Mixer Type	Agitator
Barrel Volume (L)	500
Max. Loading Volume (L)	400L
Weight (KG)	1500KG
Condition	New
Place of Origin	China
	Gansu
Brand Name	LIMAC
Power (kW)	15kW
Warranty	1 Year
Key Selling Points	High Productivity
Applicable Industries	Manufacturing Plant
Showroom Location	Indonesia
Marketing Type	New Product 2019
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	More than 5 years
Core Components	Gear
name	soap making machine
sigma mixer for soap	sigma soap mixer
Machine Type	Mixer
Product Type	Soap

Details Images
