High Capacity Production Triple Roll Mill Soap Making 3 Three Roll

High Capacity Production Triple Roll Mill Soap Making 3 Three Roll
High Capacity Production Triple Roll Mill Soap Making 3 Three Roll High Capacity Production Triple Roll Mill Soap Making 3 Three Roll High Capacity Production Triple Roll Mill Soap Making 3 Three Roll High Capacity Production Triple Roll Mill Soap Making 3 Three Roll High Capacity Production Triple Roll Mill Soap Making 3 Three Roll High Capacity Production Triple Roll Mill Soap Making 3 Three Roll

Large Image :  High Capacity Production Triple Roll Mill Soap Making 3 Three Roll

Product Details:
Place of Origin: Gansu, China
Brand Name: LIMAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $10,000.00 - $30,000.00/sets
Packaging Details: wooden box
Supply Ability: 5 Set/Sets per Month
Contact Now

High Capacity Production Triple Roll Mill Soap Making 3 Three Roll

Description
Output (kg/h): 2000 - 4000 Kg/h Feeding Size (mm): 10 - 30 Mm
Output Size (mesh): 100 - 500 Mesh Power (kW): 15
Material: Stainless Steel Application: Chemicals Processing
Condition: New Type: Grinder
Product Type: Soap, Soap Machinery Voltage: 220V/380V/OTHERS
Weight (KG): 3000 KG Warranty: 1 Year
Key Selling Points: Easy To Operate Applicable Industries: Hotels, Manufacturing Plant
Showroom Location: Philippines, Indonesia, Malaysia Marketing Type: New Product 2020
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: More Than 5 Years Core Components: Bearing, Motor, PLC
After-sales Service Provided: Engineers Available To Service Machinery Overseas Inclined: Bottom Discharged
Machine Type: Mill Capacity/Toilet Soap: 2000 4000 Kg/h (Adjustable)
Capacity/Translucent Soap: 1000- 2000 Kg/h (Adjustable) The Outside Diameter Of The Roller: 405 Mm
Effective Length: 900 Mm Wall Thickness: 60 Mm
After Warranty Service: Video Technical Support, Online Support, Spare Parts Port: Shanghai Or Qingdao

LIMAC Triple roll mill soap making 3 three roll
Product Description
High Capacity Production Triple Roll Mill Soap Making 3 Three Roll 0
HIGH PRECISION DOUBLE SCRAPER BOTTOM- DISCHARGE ROLLER CAN MAKE PURE VEGETABLE OIL SOAP NOODLES TRANSPARENT ONCE.

This bottom discharged mill with three rolls and two scrapers are design for professional soap producers. The soap particle size can reach 0.05 mm after milling. The size of milled soap is uniformly distributed, that means 100% of fficiency, The 3 rolls, made from stainless alloy 4Cr, are driven by 3 gear reducers with their own speed. The gear reducers are supplied by SEW, Germany. The clearance between rolls can be adjusted independenty; the adjusting error is 0.05 mm max. The clearance is fixed by shrinking sleeves supplied by KTR, Germany, and set screws.
The smashed soap will form flakes by pressure since the mill is bottom discharged. The milling process is no pollution to the environment, low noiso, no dropping of soap. The mill is applcable to processing tlilet soap, low-fat soap and translucent soap.

This mill now is in the top of similar machine in the world.
PRODUCT SPECIFICATIONS
No
Item
Data
1
fast Power
18KW
2
Middle power
15 kw
3
low power
7.5kw
MECHANCAL CONIGURATION:
Germany SEW gear reducers, speed ratio is 203:75:29 are used. German KTR universal coupling and expanding sleeve are adopted. The outside diameter of the roller is 405 mm, the effective length is 900 mm, and the wall thickness is 60 mm. There is a cooling device inside the rller, which is sealed by a mechanical seal. The three rollers are made of 4Cr stainless alloy, and after heat treatment, the surface hardness reaches 72 degree Shore.
ELECTRIC MOTORS:
Fast roll 18.5 kW / Middle roll 15 kW / Slow roll 7.5 kW
Details Images

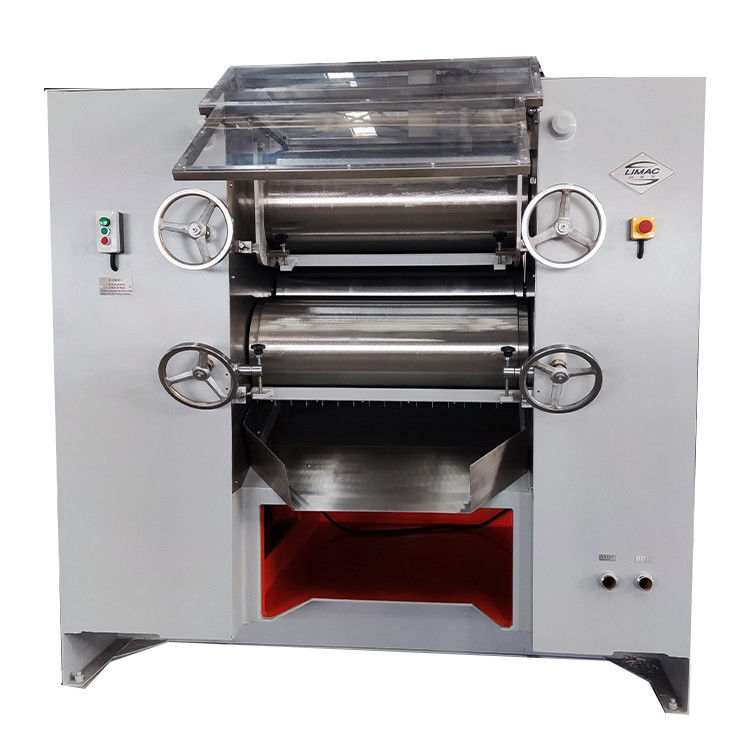

High Capacity Production Triple Roll Mill Soap Making 3 Three Roll 1

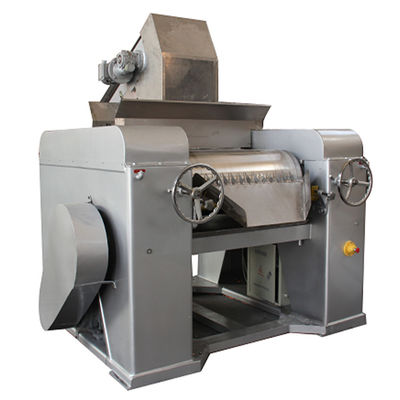

High Capacity Production Triple Roll Mill Soap Making 3 Three Roll 2

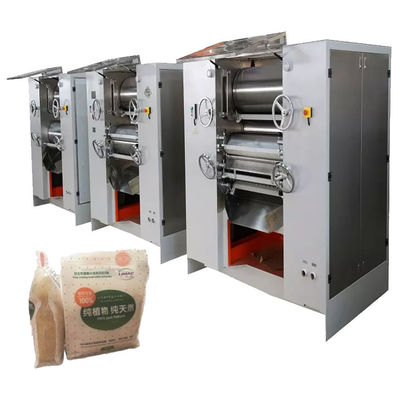

High Capacity Production Triple Roll Mill Soap Making 3 Three Roll 3
Recommend Products

Company Profile
High Capacity Production Triple Roll Mill Soap Making 3 Three Roll 4

Limac Machinery Works Corporation, Lanzhou (LIMAC) is a professional corporation devoted herself to research, development, and manufacturing of all kind of soap machinery and equipment. The corporation owned a creative design and manufacturing team, most of them have thirty years of soap-making machinery design/ manufacturing experience. For years the corporation has produced a number of up-to-date soap-making machinery and equipment. The corporation adopts internationally new mode of cooperation, integrating domestic and foreign advanced technical and production resources, so the machinery and equipment supplied by LIMAC has been highly praised by the soap producers all over the world.
High Capacity Production Triple Roll Mill Soap Making 3 Three Roll 5

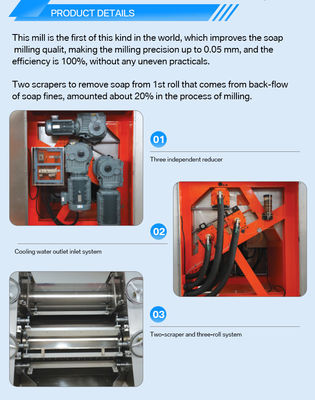

High Capacity Production Triple Roll Mill Soap Making 3 Three Roll 6
Exhibition
High Capacity Production Triple Roll Mill Soap Making 3 Three Roll 7
Shipping and Payment
High Capacity Production Triple Roll Mill Soap Making 3 Three Roll 8
FAQ
1. who are we?
We are based in Gansu, China, start from 2006,sell to Eastern Asia(30.00%),Africa(30.00%),Mid East(20.00%),Northern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
soap making machine,toilet soap production line,laundry soap making machine,packing machine,two colour-sandwich soap production line

4. why should you buy from us not from other suppliers?
Limac Machinery Works Corporation, Lanzhou (LIMAC) is a professional corporation devoted herself to research, development, and manufacturing of all kind of soap machinery and equipment. The corporation owned a creative design and manufacturing team.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese,Spanish,Portuguese,French,Russian
