Chinese Industrial Soap Making Machine with 15 kW Power Soap Mixer and Large Capacity

Large Image : Chinese Industrial Soap Making Machine with 15 kW Power Soap Mixer and Large Capacity

Product Details:

Place of Origin:	Gansu, China
Brand Name:	LIMAC

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$5,000.00 - $30,000.00/sets
Packaging Details:	wood box
Supply Ability:	10 Set/Sets per Month

Contact Now

Chinese Industrial Soap Making Machine with 15 kW Power Soap Mixer and Large Capacity

Description

Mixer Type:	Agitator	Barrel Volume (L):	500, 500
Material Processed:	Chemicals	Max. Loading Volume (L):	400 L, 400L
Range Of Spindle Speed(r.p.m):	0 - 300 R.p.m	Weight (KG):	1500 KG
Material:	Stainless Steel	Condition:	New
Product Type:	Soap	Additional Capabilities:	Granulating
Voltage:	220v	Power (kW):	15 KW
Warranty:	1 Year	Key Selling Points:	High Productivity
Applicable Industries:	Hotels, Manufacturing Plant	Showroom Location:	Philippines, Indonesia
Marketing Type:	New Product 2019	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	More Than 5 Years
Core Components:	Motor, Gear, Engine	Name:	Soap Mixer
Product Name:	Mixing Machine	Machine Type:	Mixer
Capacity:	100L~1000L	Advantage:	Long Service Life, Competitive Price
Heating Method:	Electric Heating Or Steam Heating (Optional)	Mixing Speed:	0-300r/min
Keyword:	Soap Mixer Machine	Port:	Shanghai Or Qingdao

Chinese industrial LIMAC soap mixer for soap making machine

Product Description

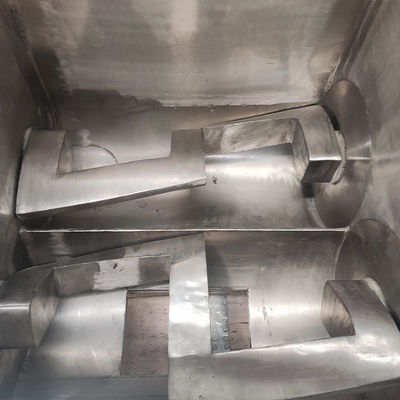

Pelletizing Mixer with three drives for toilet or transparent soap is a new developed bi-axial Z agitator.This type of mixer has agitator blade with 55° twist, to increase the mixing arc length, so to have soap inside the mixer stronger mixing. At the bottom of the mixer, an extruder' s screw is added. That screw can rotate in both directions. During the mixing period, the screw rotates in one direction to recirculate the soap to the mixing area, whine during soap discharging period, the screw rotates in another direction to extrude the soap out in form of pellets to feed the three-roll mill, installed below the mixer. The two agitators run in opposite directions and with difterent speeds, and are driven by two German SEW gear reducers separately. The rotating speed of fast agitator is 36 r/min while the slow agitator is 22 r/min. The screw diameter is 300 mm, rotating speed 5 to 20 r/min.

Fully automatic dosing mixer with two Z-shaped agitators

●Capacity: 2000S/2000ES- 3D540Z：250 kg/batch 3000/3000ES 3D600Z：350 kg/batch ●Electric contiguration: 2000S/2000ES- 3D540Z：15Kw+15KW+ 15KW

3000S/3000ES- 3D600Z：18.5KW+ 18.5Kw+15KW

Type	Diameter of rmixling blade(mm)	Speed(r/min)	Capacity(kg/batch)	Motor(kW)
3000ES-600Z	600	Shaft A 36 Shaft B 22	400	18.5+18.5
2000ES -540Z	540		Shaft B 22	300	15+15
1000ES- 450Z	450			200	11+11

Specification

item	value
Mixer Type	Agitator
Barrel Volume (L)	500
Max. Loading Volume (L)	400L
Weight (KG)	1500KG
Condition	New
Place of Origin	China
	Gansu
Brand Name	LIMAC
Power (kW)	15kW
Warranty	1 Year
Key Selling Points	High Productivity
Applicable Industries	Manufacturing Plant
Showroom Location	Indonesia
Marketing Type	New Product 2019
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	More than 5 years
Core Components	Gear
name	soap making machine
sigma mixer for soap	sigma soap mixer
Machine Type	Mixer
Product Type	Soap

Details Images

Recommend Products

Company Profile

Limac Machinery Works Corporation, Lanzhou (LIMAC) is a professional corporation devoted herself to research, development, and manufacturing of all kind of soap machinery and equipment. The corporation owned a creative design and manufacturing team, most of them have thirty years of soap-making machinery design/ manufacturing experience. For years the corporation has produced a number of up-to-date soap-making machinery and equipment. The corporation adopts internationally new mode of cooperation, integrating domestic and foreign advanced technical and production resources, so the machinery and equipment supplied by LIMAC has been highly praised by the soap producers all over the world.

Exhibition

Shipping and Payment

FAQ

1. who are we?
We are based in Gansu, China, start from 2006,sell to Eastern Asia(30.00%),Africa(30.00%),Mid East(20.00%),Northern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
soap making machine,toilet soap production line,laundry soap making machine,packing machine,two colour-sandwich soap production line

4. why should you buy from us not from other suppliers?
Limac Machinery Works Corporation, Lanzhou (LIMAC) is a professional corporation devoted herself to research, development, and manufacturing of all kind of soap machinery and equipment. The corporation owned a creative design and manufacturing team.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese,Spanish,Portuguese,French,Russian
