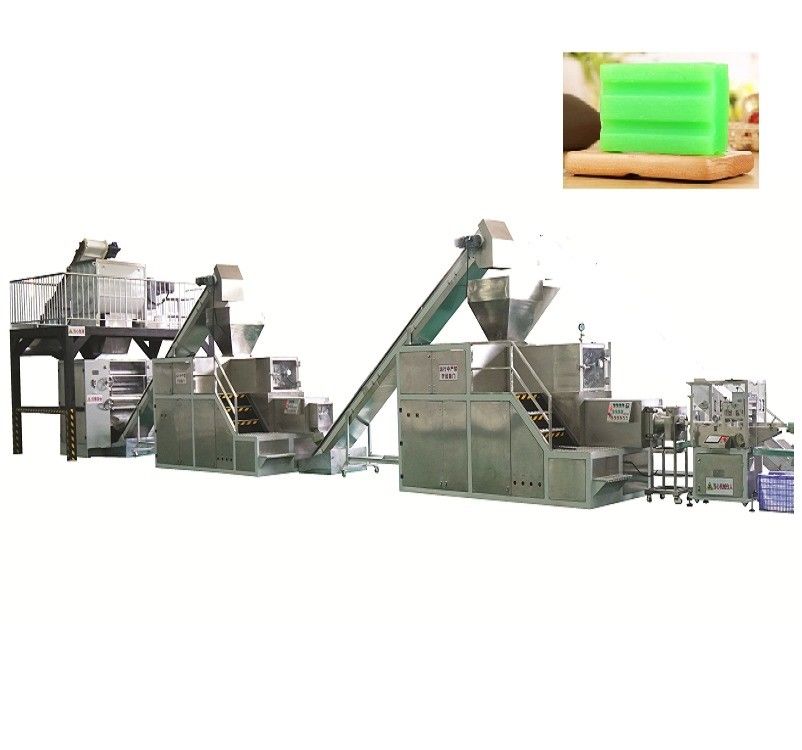

Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine

Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine
Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine

Large Image :  Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine

Product Details:
Place of Origin: Gansu, China
Brand Name: LIMAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $30,000.00 - $200,000.00/sets
Packaging Details: wooden box
Supply Ability: 10 Set/Sets per Month
Contact Now

Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine

Description
Condition: New Weight (KG): 5000
Machine Type: Soap Making Machine, Soap Production Line Showroom Location: Indonesia, Thailand
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: More Than 5 Years
Core Components: PLC, Motor Warranty: 1 Year
Key Selling Points: Multifunctional Applicable Industries: Manufacturing Plant
Brand Name: LIMAC Name: Laundry Soap Making Machine
Material: Stainless Steel 304 Capacity: 500-3000KG/H
Application: Any Soap After Warranty Service: Video Technical Support, Online Support
Port: Shanghai

Products Description
Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine 0
Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine 1
Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine 2

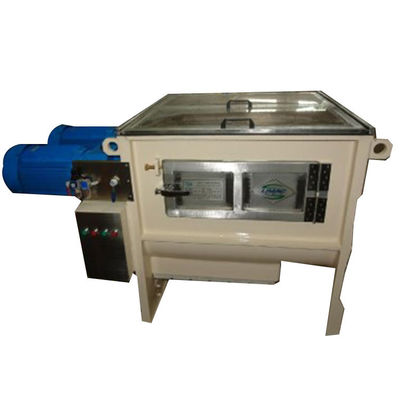

Mixer
Mixing soap noodles and other additive
This biaxial mixer has Z-agitators, the twist angle is changed to 55°to increase the mixing length，obtaining better agitation. The
two agitators have different speeds: fast agitator 36 r/min, slow agitator 22 r/min. The soap pellets will be turn to powder in 3
minutes.
Capacity: 250 kg/batch
Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine 3
Three roll mill
bottom discharged mill with three rolls and two scrapers are design for professional soap producers. The soap particle size can
reach 0.05 mm after milling. The size of milled soap is uniformly distributed, that means 100% of efficiency. The 3 rolls, made
from stainless alloy 4Cr, are driven by 3 gear reducers with their own speed. The gear reducers are supplied by SEW, Germany. The
clearance between rolls can be adjusted independently; the adjusting error is 0.05 mm max. The clearance is fixed by shrinking
sleeves supplied by KTR, Germany, and set screws.
Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine 4

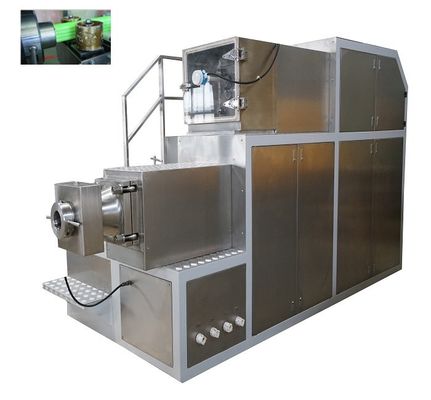

Duplex vacuum plodder
This is a two-stage extruder. Each worm is speed adjustable. The upper stage is for refining of soap, while the lower stage is for
plodding of the soap. Between the two stages there is a vacuum chamber where air is evacuated from the soap to eliminate air
bubbles in the soap. The high pressure in the lower barrel make soap compact then the soap is extruded out to form continuous soap
bar.
Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine 5

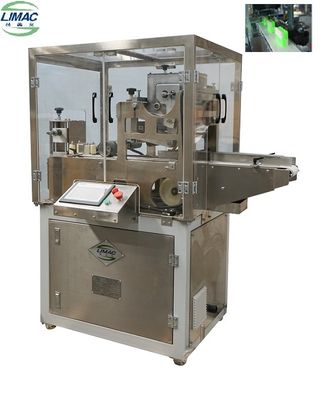

soap cutter
1000ES-QKI Electronic single-blade cutter is with vertical engraving rolls, used in toilet or translucent soap finishing line for
preparing soap billets for soap stamping machine. All electric components are supplied by Siemens. Split boxes supplied by
professional company are used for whole servo and PLC control system. The machine is noise free.
Cutting accuracy ± 1 gram in weight and 0.3 mm in length.
Capacity:
Soap cutting width: 120 mm max.
Soap cutting length: 60 to 999 mm
Cutting speed: 20 to 220 pcs/min
Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine 6

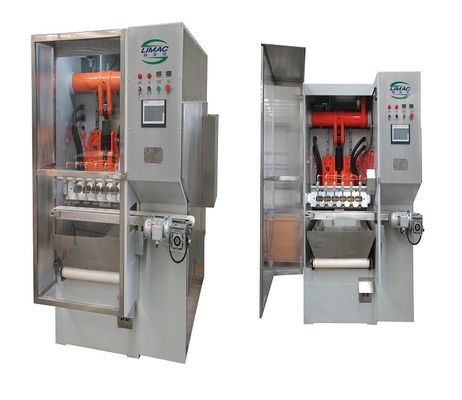

soap stamper
stamper press any soap shape and logo. This machine uses best mechanical parts, such as two-speed gear reducer, speed variator and
right-angle drive supplied by Rossi, Italy; coupling and shrinking sleeve by German manufacturer, bearings by SKF, Sweden; Guide
rail by THK, Japan; electric parts by Siemens, Germany. T The control is realized by a PLC.
It controls the vacuum and compressed air on/off during stamping.
Capacity:
6 pieces in one stroke, 5 to 45 strokes per minute.
Compressed air pressure: 0.6 MPa.
FEATURES AT A GLANCE
Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine 7
Right elevation
Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine 8
Left elevation
Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine 9
Front elevation
SIMILAR PRODUCTS
FAQ
1. Are you factory? Yes! We're specializing in designing and manufactureing the whole set of soap machinery from oil and soap noodles. 2.Can you supply technical support. Yes! We can support to install and produce soap for whole line. ,and we also supply raw material and formula.
3. Can you guarantee your quality? Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
