Stainless Steel 304 Full Automatic High Speed Small Toilet Soap Carton Box Packing Machine

Name: Stainless Steel 304 Full Automatic High Speed Small Toilet Soap Carton Box Packing Machine
Brand: Lanzhou Limac Machinery Works Co., Ltd.
Price: Negotiable USD
Availability: InStock

All Products

Toilet Laundry Soap Finishing Line
(60)

Small Soap Making Machine
(29)

Automatic Soap Packing Machine
(23)

Soap Vacuum Drying System
(21)

Soap Stamper Forming Machine
(20)

Soap Cutting Machine
(18)

Soap Plodder Machine
(16)

Copper Soap Mold
(16)

Two Colour Sandwich Soap Finishing Line
(12)

Soap Base Mixer Machine
(13)

Soap Refiner Machine
(8)

Three Roll Mill Machine
(7)

Liquid Soap Finishing Line
(1)

Ungrouped
(3)

Certification

I'm Online Chat Now

Stainless Steel 304 Full Automatic High Speed Small Toilet Soap Carton Box Packing Machine

Large Image : Stainless Steel 304 Full Automatic High Speed Small Toilet Soap Carton Box Packing Machine

Product Details:

Place of Origin:	Gansu, China
Brand Name:	LIMAC

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$5,000.00 - $20,000.00/sets
Packaging Details:	wooden box
Supply Ability:	10 Set/Sets per Month

Contact Now

Stainless Steel 304 Full Automatic High Speed Small Toilet Soap Carton Box Packing Machine

Description

Type:	Wrapping Machine	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops
After Warranty Service:	Video Technical Support	Local Service Location:	Saudi Arabia
Showroom Location:	Philippines, Saudi Arabia	Condition:	New
Packaging Type:	Paper	Packaging Material:	Plastic, Paper
Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	220v	Weight:	900 KG
After-sales Service Provided:	Online Support, Video Technical Support, Field Maintenance And Repair Service	Warranty:	1 Year
Key Selling Points:	Easy To Operate	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	More Than 5 Years	Core Components:	PLC, Motor, Bearing
Name:	Soap Carton Packing Machine	Packing Product:	Soap
Production Capacity:	20-200packs/min	Packing Speed:	200carton/min
Packing Material:	Carton	Soap Size Length:	50-300mm
Soap Size Width:	25-125mm	Machine Material:	Stainless Steel 304
Film Thickness:	0.03-0.07mm	Advantage:	Easy Operation
Port:	Guangzhou

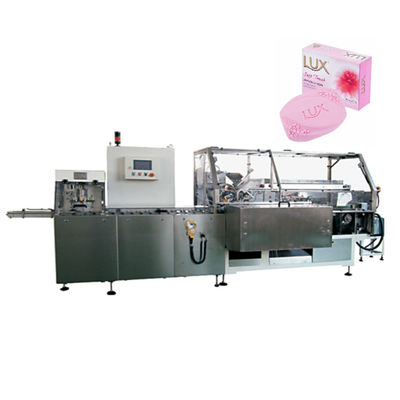

Full Automatic high speed small toilet soap carton box packing machine

Product Overview

Cartoning machine is suitable for sachet, condom, adhesive bandage, soft ALU strip, plaster, coffee bag, face mask and similar product. It consists of direction folding (1-4folds)and feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically. It can be added hot-glue machine.

Main performance and structure features of automatic packing machine :
1. Double motor,double Panasonic transducer and PLC controller,flexible bag length setting and cutting.saving time and film.

2.human-machine interface,convenient and quick parameter settings.
3. Self diagnosis failure function,failure displayed clearly.
4. High sensitive optical electric color mark tracking system and digital input cut position,with make the sealing and cutting more accurate.
5. Separated PID control system for temperature,suitable for various packing materials.
6. Stopping the machine in selected position,no sticking on the knife and no waste of the film.
7. Simple driving system,reliable working,convenient maintenance.
8. All controlled by program,convenient for adjusting and upgrading.

PRODUCT SPECIFICATIONS

Main technical parameters			JDZ-120G
Encasing speed			30-120cartons/min
Carton	Quality requirement	250-350g/m2
Carton		Dimension range(LWH)	(70-180) (35-85) (14-50)mm
Leaflet	Quality requirement	60-70g/ m2
		Unfolded leaflet specification	(80-250) *(90-170)mm
		Fold range	1-4 fold
Compressed air	Working pressure	≥0.6mpa
Compressed air		Air consumption	260-300L/min
Power supply			220V 50HZ
Motor power			2.2Kw
Machine dimension(LWH)			420010501600mm
Machine weight			1600kg

Details Images

SALES AND SERVICE NETWORK

Company Profile

Limac Machinery Works Corporation, Lanzhou (LIMAC) is a professional corporation devoted herself to research, development, and manufacturing of all kind of soap machinery and equipment. The corporation owned a creative design and manufacturing team, most of them have thirty years of soap-making machinery design/ manufacturing experience. For years the corporation has produced a number of up-to-date soap-making machinery and equipment. The corporation adopts internationally new mode of cooperation, integrating domestic and foreign advanced technical and production resources, so the machinery and equipment supplied by LIMAC has been highly praised by the soap producers all over the world.

Exhibition

Shipping and Payment

FAQ

1. who are we?
We are based in Gansu, China, start from 2006,sell to Eastern Asia(30.00%),Africa(30.00%),Mid East(20.00%),Northern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
soap making machine,toilet soap production line,laundry soap making machine,packing machine,two colour-sandwich soap production line

4. why should you buy from us not from other suppliers?
Limac Machinery Works Corporation, Lanzhou (LIMAC) is a professional corporation devoted herself to research, development, and manufacturing of all kind of soap machinery and equipment. The corporation owned a creative design and manufacturing team.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese,Spanish,Portuguese,French,Russian
